Model 536 Drill Jig - $49.95
plus $11 shipping for US, contact us for shipping charges to other destinations before ordering

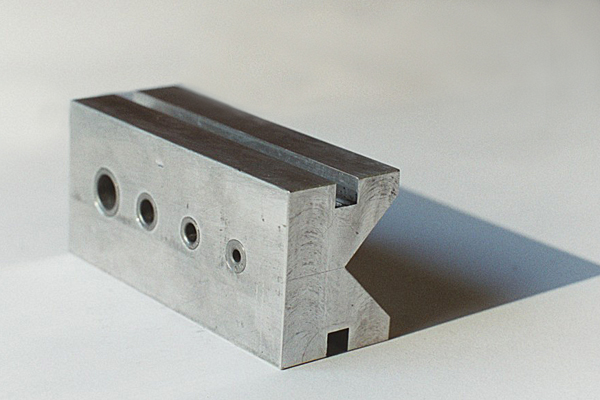

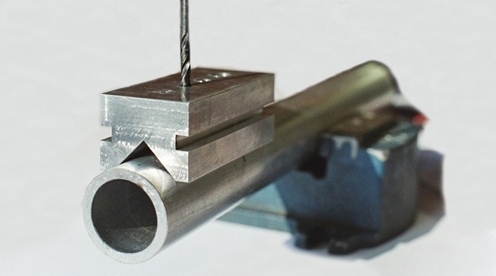

Many times we have a need to drill a precision hole in an assembly where it is not possible to use a drill press. The Model 536 Drill Jig is constructed with four hardened steel drill bushings to accept 1/8, 3/16, 1/4, and 5/16 inch diameter drills. The machined aluminum frame was designed to be used with round or flat stock. By clamping to round tubing or rod, it is possible to drill a hole accurately through the center of the material with a hand drill. When drilling flat stock, locate hole location with a prick punch, then insert a spotting punch in the proper drill bushing, and slide the drill jig on the flat surface until the spotting punch locates the prick punch mark. Clamp the drill jig in place and remove the spotting punch and drill the hole. The drill jig has machined grooves on each side to accept a screw clamp which is being developed for clamping onto round stock and which will be available at a later date.
Dimensions: 3 3/4" x 1 3/4" x 1 3/8"; Shipping weight: 14.3 oz
